Commercial Vehicle Brake Testing
The DVSA April 2025 roadworthiness legislation primarily focuses on enhanced brake testing for commercial vehicles, particularly HGVs and trailers. This includes mandatory laden roller brake tests (RBTs), or use of Electronic Braking Performance Monitoring Systems (EBPMS) at every safety inspection. These checks must be conducted 4 to 13 times per year, dependant on the type of vehicle or trailer being tested. Luxus Heavy Duty Brake Testers provide an innovative and efficient brake testing solution that meets the stringent requirements of the DVSA legislation. Designed and developed in partnership AHS PRÜFTECHNIK, a German company renowned for over 60 years for its expertise in designing state-of-the-art brake testing equipment, Luxus Roller Brake Testers are available in both in-ground and on-floor versions. This equipment is fully DVSA ATF & ATL Approved*, guaranteeing unmatched quality and performance in the industry.
Contact UsThese innovative products boast a variety of features aimed at enhancing performance and durability.
• 3 year parts and labour warranty** covering rollers, chains, motor/gearboxes, sensors and electronic boards
• Bi-directional operation for versatility
• Galvanised frames for extended operational life
• 8 Sensor axle weighing for a precise and consistent brake test
• Fully epoxy-corundum coated rollers, for optimal grip and durability
• Soft start system for energy efficiency and protection of internal components
• Roller lock mechanism for easy exit from the brake tester
*In-ground version. Mobile unit runs on ATF Approved Software.
**Subject to proof of maintenance - must be serviced/calibrated every six-months, by an ISN Garage Assist engineer.
Warranty exclusions:
PC, printer, keyboard, mouse, screen (large display screen or tablet) and remote control (which are subject to a 1-year warranty). Normal wear and tear of items under regular use, such as batteries, consumables (e.g. printer ink/paper) - these items will be invoiced at the time of service. Problems with the equipment caused due to installation of non -ISN software on to the PC. Damage to remote control handsets. Neglect, (lack of regular operator servicing/adjustments as detailed in the operator’s manual); misuse, deliberate, or accidental damage; modifications/alterations; removal or relocation of the equipment; acts of nature (e.g. flooding, or lightning strike), and unauthorised repairs by anyone other than ISN Garage Assist approved engineers.

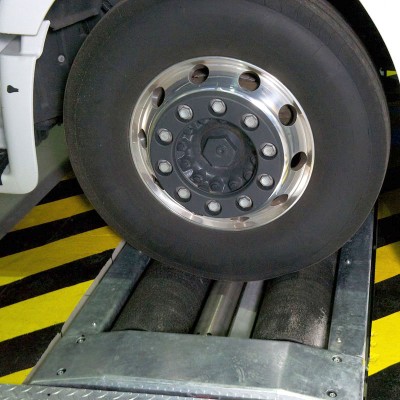

BT260 Heavy Duty In-ground Roller Brake Tester for Commercial Vehicles
Brand: Luxus
Fully ATF & ATL Approved, the Luxus BT260 in-ground brake tester is a top-of-the-line machine designed and manufactured in Germany to meet the highest demands in vehicle testing. Equipped with reinforced 2 x 15kW flat gear motors, heavy-duty double chains, and special bearings, this brake tester guarantees exceptional performance that surpasses industry standards. The BT260 can be installed in a single recess, or with the roller beds separated and positioned on either side of an inspection pit. The robust galvanised frame construction ensures durability and allows for customisation to fit existing pits. It is approved for ATF testing of HGV, PSV, and ATL testing of Class 4 & 7 vehicles and can be seamlessly integrated into manual or automated DVSA testing procedures, providing precision and reliability for thorough vehicle inspections.
KEY FEATURES
• Tacho testing system (converts brake tester into an approved tacho tester)
• Roller Guard Rail Kit
• Roller Drive Over Safety Plate (pair)
• Pit Safety System (split pit installations only)
• Axle load simulator kit (pit install only).
• Brake Tester Civil works
• Pedal force meter, either radio or PC-based
KEY FEATURES
• Specially designed and reinforced high performance Heavy duty 2 x 15kW flat gear motors
• Bi-directional operation
• Equipped with heavy duty double chains and special bearings for the highest demands
• Long-life, fully epoxy-corundum coated rollers for extreme usage
• Galvanised robust frame construction for long life (special versions available for existing pits and low-loaders)
• Soft start system – An energy saving technology that smooths the power requirement by avoiding electrical peaks when starting the brake tester, protecting bearings, gears and chains, increasing the longevity of the brake tester
• 8 sensor axle weighing for a very accurate and constant brake test
• Roller lock – eases brake tester exit

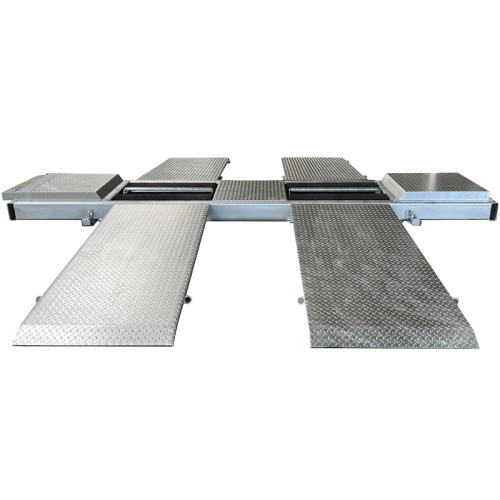

BT306 On-Floor/Mobile Heavy Duty Roller Brake Tester for Commercial Vehicles
Brand: Luxus
The Luxus BT306 on-floor/mobile brake tester is both versatile and reliable. This innovative tester offers the flexibility to be used in a fixed location or as a mobile unit, eliminating the need for extensive groundworks, or worrying about limitations associated with rented premises. With its high-performance heavy duty drive train, powered by 2x 11kW motors, the Luxus BT306 ensures an extended operating life and accurate test results. Measuring just 21cm in height, this tester is also suitable for testing bus and coach brake systems. The single piece roller bed, paired with ATF Software and the latest technology, guarantees precise and efficient testing. Operation of the Luxus BT306 is simple, thanks to its user-friendly interface that allows for testing in ATF or manual mode. In ATF mode, the tester automatically generates a printed report in standard DVSA format upon completion of a test, streamlining the process and providing detailed results for easy analysis.
OPTIONAL EXTRAS
• Free-running rollers integrated into ramp (inc. installation frame)
• Mobile trolley for display unit
• Robust, portable case for notebook and printer
FEATURES AND ADVANTAGES
• Single piece roller bed with ATF Software
• Only 21 cm high - allows the testing of car brake systems
• Bi-directional operation
• Galvanised frame maximises operational life
• Wheel and axle weighbridge with eight sensors for the most accurate of brake tests
• Fully epoxy-corundum coated rollers, for high grip and long life
• High-performance heavy duty drive train, with 2x 11kW motors for extended operating life
• Roller lock for ease of exit
• Soft start motors as standard
• Compact for easy transportation
• Fast set-up
