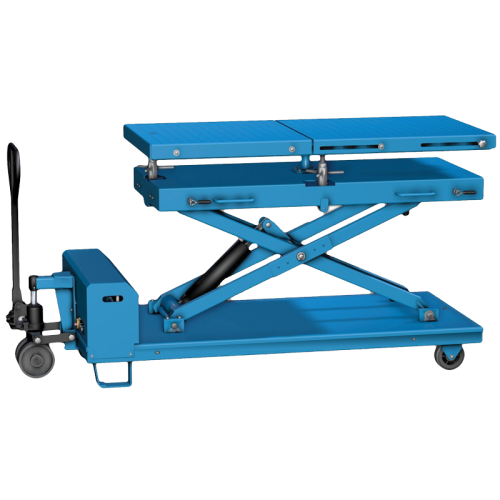

BL1500 Electric Battery Lift

The BL1500 Electric Battery Lift table from Hofmann Megaplan provides workshops with flexibility for a variety of lifting requirements. While it has been specifically designed for lifting an electric vehicle battery during maintenance, it can also be used for engine and gearbox work.

Thoughtful design solutions include versatile platform adjustments, making it an adaptable solution for lifting tasks. The BL1500 incorporates a powerful hydraulic system capable of lifting loads up to 1500kg, and features a twin-plane automatically tilting tabletop designed to provide flexibility for positioning and securing components beneath a vehicle.

All mechanical structures—including platforms, base frames, and arms—are fabricated from steel plates to provide a robust and durable framework while optimising weight reduction. The lift consists of two tables, scissor arms, a base frame, and a mobile jack.

• Powerful hydraulic lift with electric tilting angles of +/- 5.1° (left/right) & +/- 2.2° (front/rear)
• Twin-plane tilting tabletop provides the ultimate alignment flexibility with battery/vehicle component
• Wired remote control for lifting & tilting
• 1500kg capacity
• Tabletop: 900mm wide x 1728mm long – extendable to 2027mm
• Lifting height 740mm to 1800mm

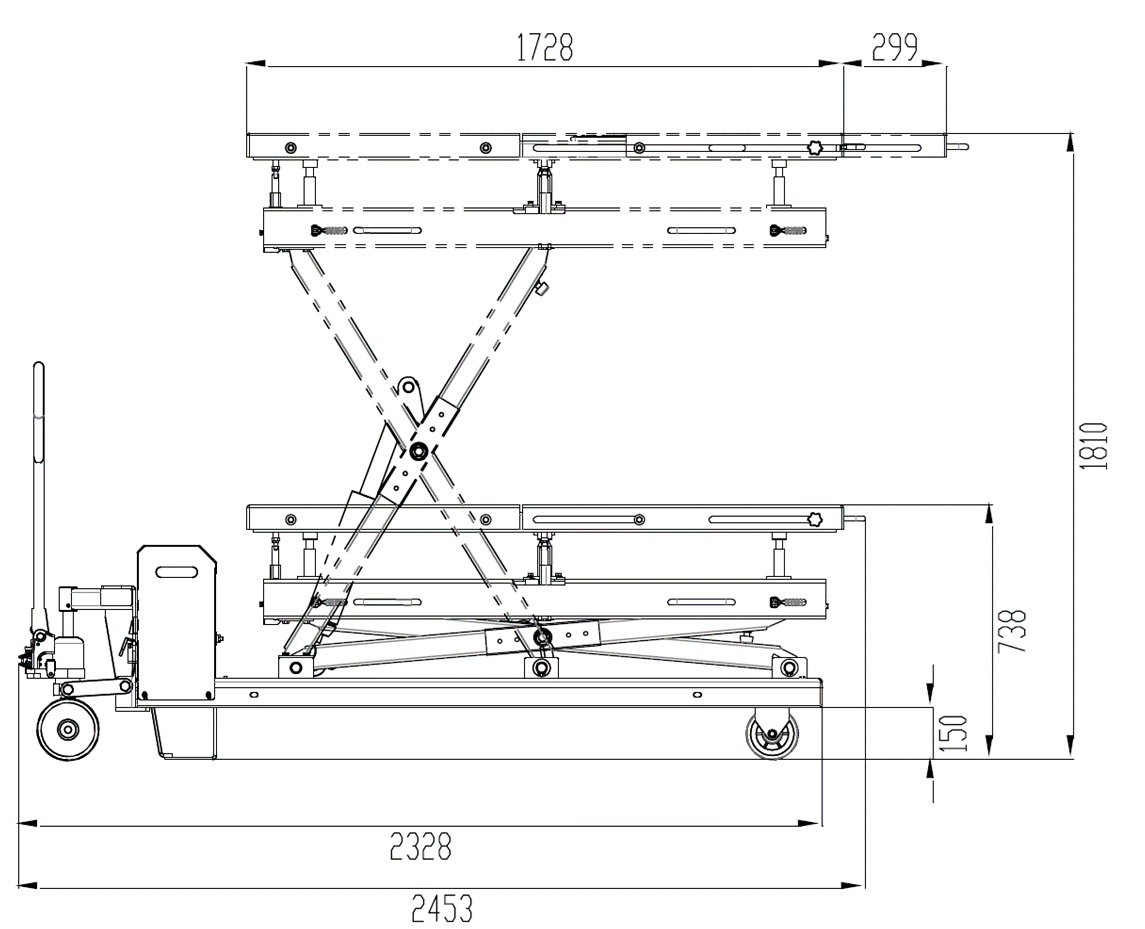

Dimensions
