Diesel Emissions Testing

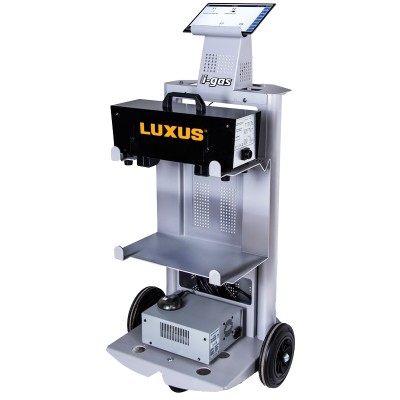

Luxus i-Gas Integrated Emissions Analyser
Brand: Luxus
Luxus diesel emissions gas analysis test equipment delivers testing to the highest standards. Market-leading components are included as standard, to ensure that functional performance exceeds annual test requirements. The emissions tester units combine ease of use with outstanding reliability while boasting Bluetooth connectivity as standard. The Luxus i-Gas integrated emissions analyser can operate as a stand-alone unit, with a tablet or PC, or it can be integrated with your roller brake tester computer, combining the display of information on a single device.
All you require is the mobile trolley and PC/tablet with the OPA-100 Opacimeter Smoke monitoring head for diesel engines, and these can communicate with the software incorporated in the roller brake tester, thereby alleviating the need for a large trolley and separate PCs.
KEY FEATURES
• Smoke analyser, on mobile trolley
• DVSA approved
• High quality, easy to follow graphics
• Tablet PC
• Fast warm up and measuring time
• Cable free RPM & Temperature readings via MGT-300 EVO
• Proven track record in the UK
• Conforms to the latest Euro 6 diesel smoke test requirements
Opacimeter for Diesel Engines
The OPA-100 is the perfect Opacimeter for Diesel emissions analysis. ISO 11614 Compliant and compact in size, with a 12V DC power supply, it communicates with the PC via Bluetooth. The SmokeMeter module can be connected to the serial port of any PC and the ‘OMNIBUS 800’ software allows for the management of different vehicle’s diagnostic and maintenance operations.
MEASURING FIELDS
| Light transmission | 0 | - 99.9 % | Res. 0.1 |
| Light transmission | 0 | - 9.99 M-1 | Res. 0.01 |
| Rev counter | 300 | - 9,990 RPM heat | Res. 10 |
| Oil Temperature | 20 | - 150 °C | Res. 1 |
| Smoke Temperature | 20 | - 400°C | Res. 1 |
MGT-300 Evo Emissions Tester
Tester with Bluetooth connection
The MGT-300 EVO allows users to easily and accurately detect and transmit RPM, temperature and other related information via Bluetooth connection. The built-in rechargeable battery negates the need for cables to the vehicle battery when using the magnetic vibration sensor. The optional EOBD-300 allows engine speed to be recorded via OBD interface and Bluetooth.
Signal recording options:
• Vibration sensor
• Alternator harmonics
• EOBD connector (EOBD-300) for speed and temperature
Commercial Vehicle Emissions Testing Accessories

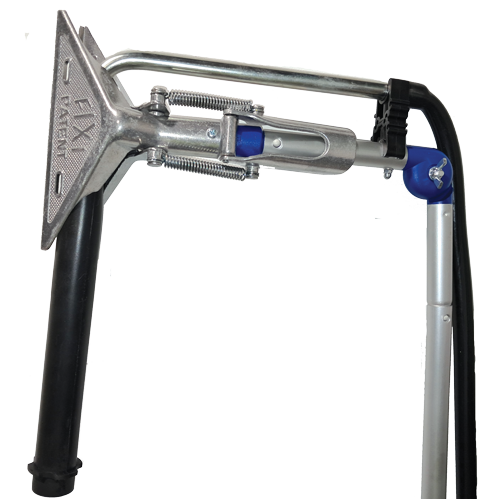

SG-030 Probe
The highly precise SG-030 probe can be used in particularly difficult situations (e.g. on trucks).
