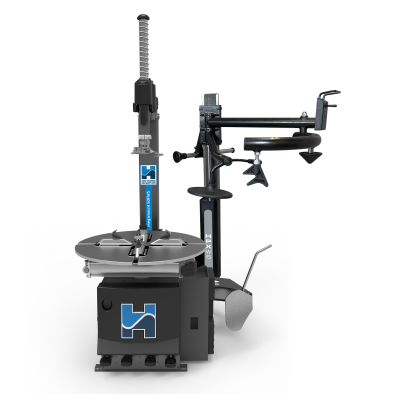

megamount 50FWS

Automatic Tyre Changer with Locking Capacity up to 27"

• 24-inch plate
• 50 x 50 mm square bar; square bar is guided by rollers
• Hexagonal bar has a thickness of 41mm, adjustable hex bar
• Working range of the bead breaker shovel: 15"
• Cylinder diameter 200 mm/piston 25 mm
• Working range 12"/15''
• Pedals are positioned in a row (including rotary control); pedal unit can be detached for servicing work
• Double speed: 8/16 rpm (inverter optional)
• Clamping cylinder diameter 80mm
• External clamping claws can be easily replaced, assembly column can be regulated (speed)
• Complete with Michelin premium manual tyre inflator, side storage compartment, additional bead clamp and special curved tyre iron

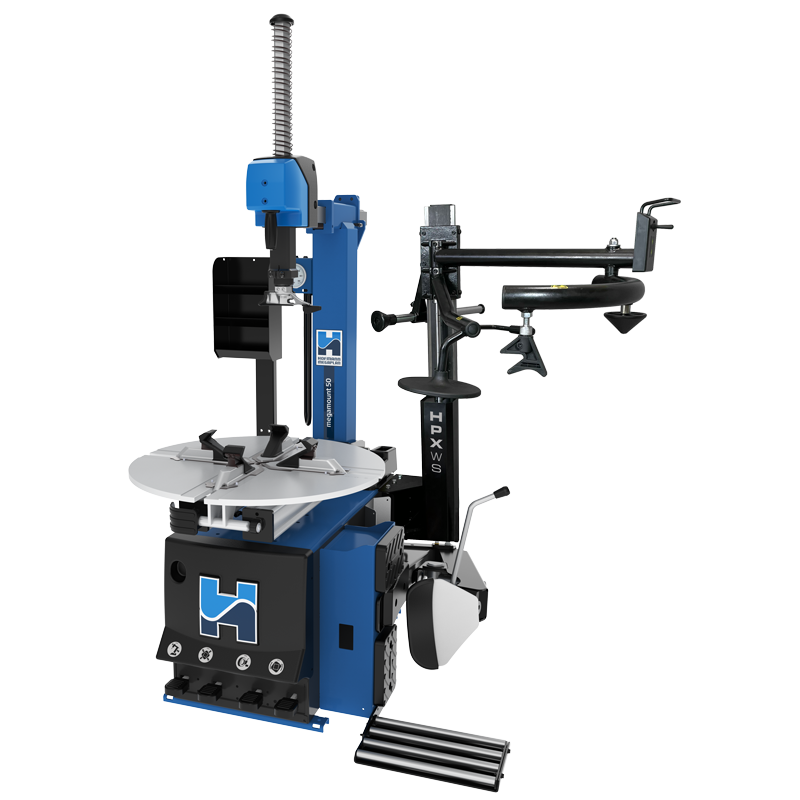

• Supplied with HPX-WS helper arm

External clamping range	10"–24"
Inside clamping range	12"–27"
Max. wheel diameter	1170 mm/46"
Max. wheel width	381 mm /15"
Working Range	10"–27"
Motor	0.8/1.1 kW – 3 Ph – 400 V – 50 Hz
Max. torque	1200 Nm
Speed of rotation	8–16 rpm
Height of the plate from the floor	670 mm
Bead breaker max. opening	380 mm/15"
Bead unseating force on shovel (10 bar)	15000 N
Operating pressure (recommended)	8–10 bar
