Extra-wide Jacking Beams

The ability to lift the front/rear of a vehicle off the platform of an MOT lift is essential when undertaking an MOT.

Contact Us

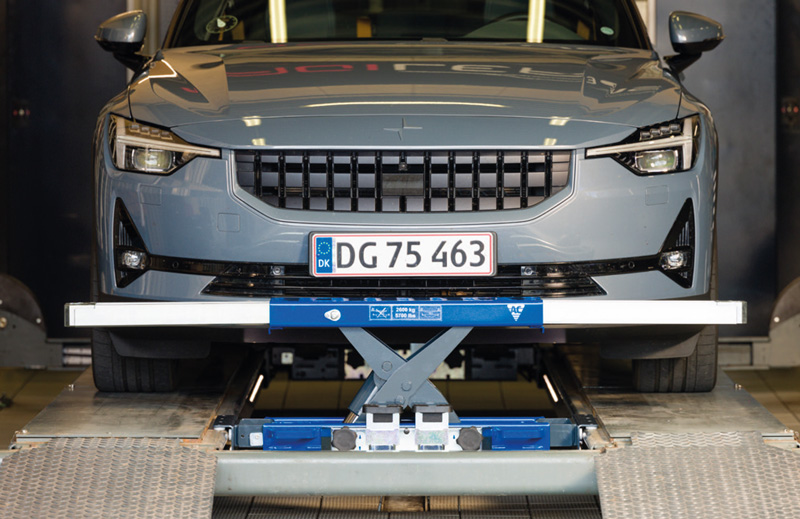

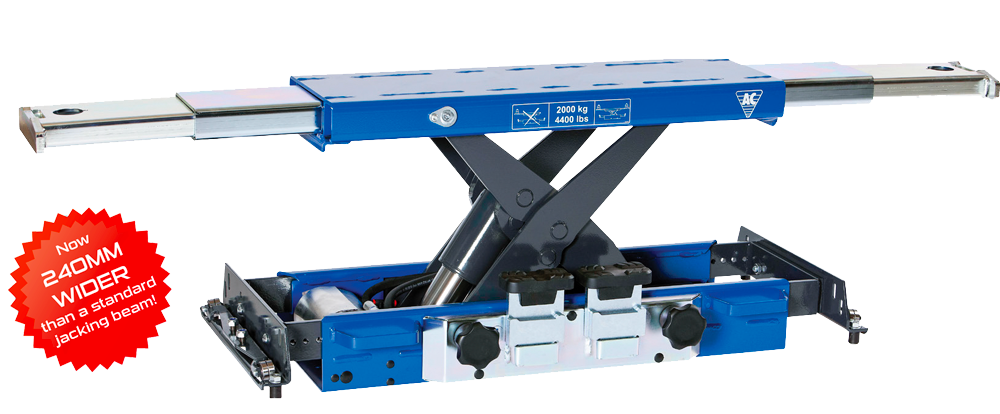

Hofmann Megaplan ‘extra-wide’ jacking beams are designed to fit all the MOT vehicle lifts we supply. All the jacking beams we supply will extend 240mm wider than a standard jacking beam, giving you all the flexibility you need to test today’s wider vehicles and EVs!

Class 4 MOT:
• 2.0 tonne manual pump Part No. SD20L-W
• 2.0 tonne pneumatic pump Part No. SD20PHL-W

Class 7 MOT:
• 2.6 tonne manual pump Part No. SD26L-W
• 2.6 tonne pneumatic pump Part No. SD26PHL-W

Key Features

FAST, PRECISE & RELIABLE
High quality, double-acting pump and hydraulic system delivers fast and precise lifting.

FUNCTIONAL

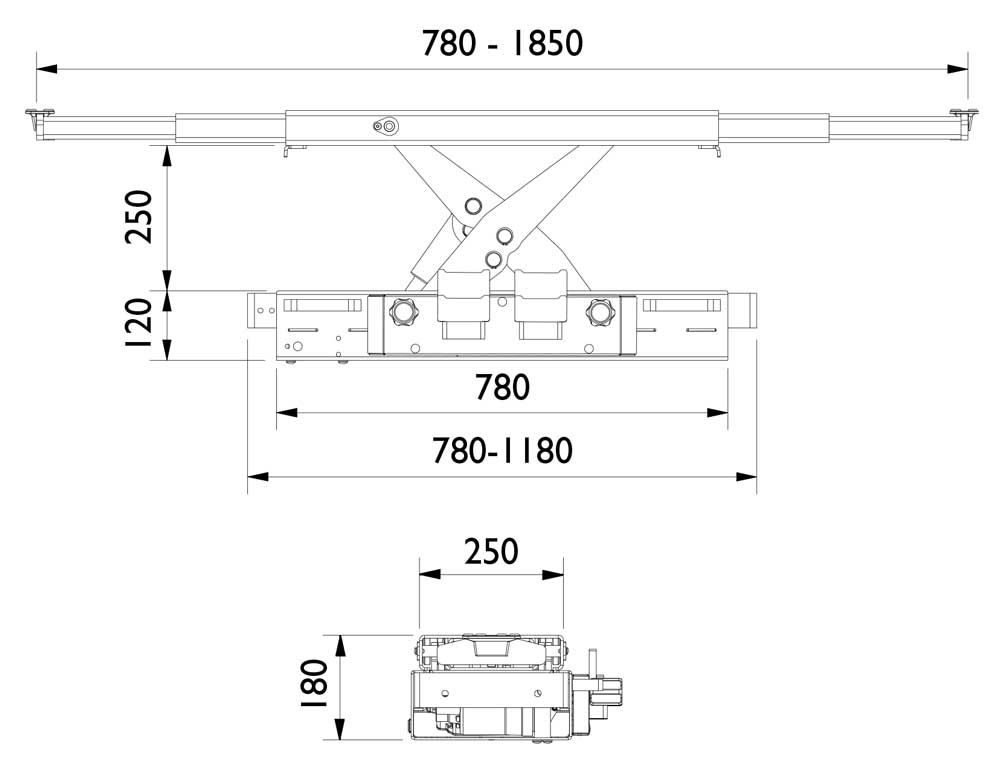

Low closed height of only 180 mm makes it suitable for vehicles with a low clearance.

UNIQUE SUPPORT ARM SYSTEM
Height adjustable support arm system, designed to fit all current lifts and pits.

FLEXIBLE REACH
Flexible top support beam with lifting extensions, ensures a perfect fit under a vehicle.

OPTIMUM SAFETY
Two-hand lowering operation with dead man’s release, automatic safety locking device and overload valve for optimum safety.

EXTENSIONS INCLUDED

Supplied with 3 extension sets (10/40/85 mm) extension sets and rubber cushion for protection of car body.

MADE IN EUROPE
Built in Denmark, to the highest quality standards, guaranteeing safe and efficient operation and a long life.

GUARANTEED
3 year warranty on hydraulics (cylinder and pump), 10 years on frame, chassis and steel.

More Info

Back to MOT Test Equipment

Class leading extra wide pick-ups (essential for new EV ranges)

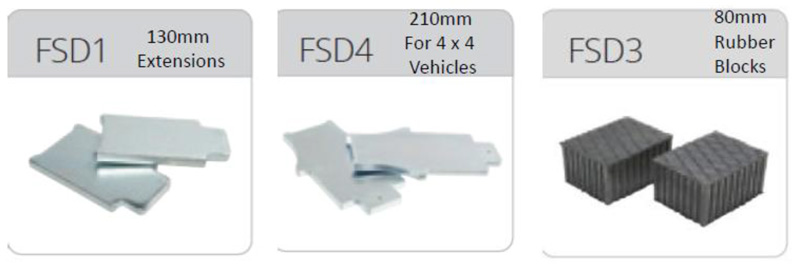

Accessory kit included as standard, consisting of:
• 2x 130mm extensions
• 2x 210mm extensions (mainly for 4x4)
• 2x 80mm rubber blocks

Jacking Beams
