To enable us to compete with the wider market, we have our very own Hofmann Megaplan GeoLift 4200, based around the increasingly more common 'modular' concept, whereby the platform of a standard 4 post lift is built up to introduce front recesses and allow for rear slip plates. However, we are proud to be one of the few manufacturers continuing with the traditional method of producing a dedicated alignment platform, thus keeping the lowest position to a minimum and therefore ideal for lower vehicles and using shorter run-up ramps.
C432 - 3200kg Capacity and 4.1m Platform Length
C442 - 4000kg Capacity and 4.335m Platform Length
C445 - 4000kg Capacity and 4.8m Platform Length
C455 - 5000kg Capacity and 5.2m Platform Length
C472 - 7000kg Capacity and 6.24m Platform Length

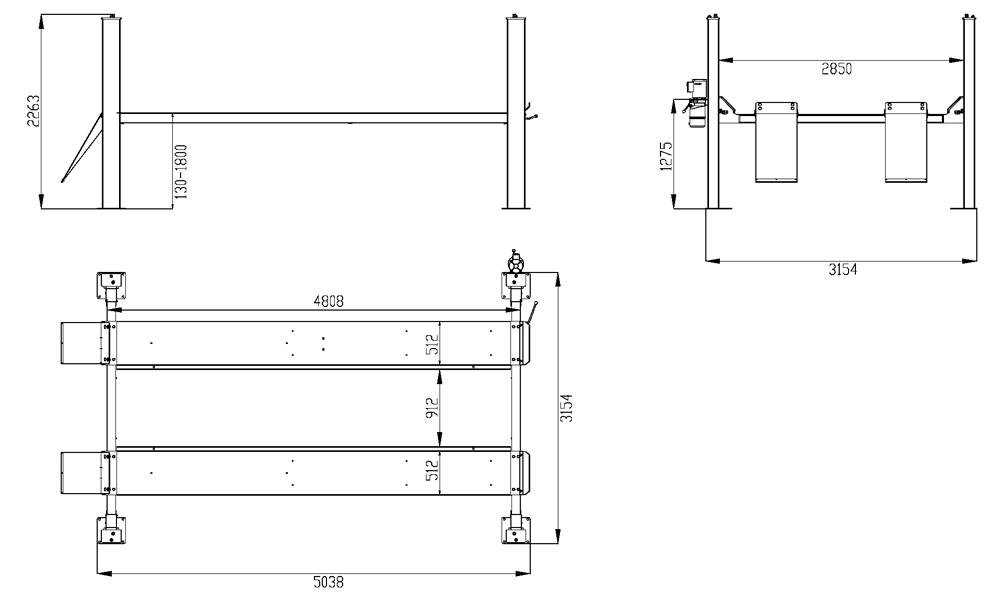

GeoLift4200 - 4200kg Capacity and available in 4.8 and 5.2m Platform Lengths
Need more Information on our Wheel Alignment 4 Post Lifts?
The cheapest way to produce an alignment lift is to take a Flat Platform Lift and simply ‘build it up’. This is what many manufacturers do, and is certainly a feature of Chinese lifts. So instead of producing a platform with the recesses for the turnplates and slip plates built-in, they are instead placed on top and the gaps then filled in. The downside of this is that you have an unnecessarily high lift when it is in its lowered position, and this causes problems with even the most common vehicles, let alone those with low ground clearance. The only solution is to have extra-ordinarily long run-up ramps, which are impractical and space consuming. All of the Cascos alignment lifts are designed and manufactured specifically for alignment and therefore offer the lowest minimum height, shortest run-up ramp and minimum space consumption.
Our platforms are reinforced by hot-rolled profiles (a bit like an RSJ). This avoids any deformation and bears the weight better, keeping the platform totally flat/straight over the lifetime of the lift.
Cascos use a double mechanical safety system (security ladders and safety bars) coupled with a pneumatic security system, providing far better reliability than electromagnetic devices used on budget lifts.
