More lifting in less space with a scissor lift
A scissor lift raises the vehicle on a pair of low platforms driven by folding scissor arms, instead of columns at the side. With nothing standing up beside the car, scissor lifts usually make better use of floor space than 2 post or 4 post lifts and leave the area around the vehicle open. That is why they have become a popular choice for tyre bays, body shops, servicing bays and alignment and MOT work.
Hofmann Megaplan offers a full range of scissor lifts covering fast fit and tyre work, general under-vehicle servicing, wheel alignment and MOT and ATL use, plus a dedicated workbench for motorcycles. This page explains the main types so you can narrow down which one suits your workshop.
The four types of scissor lift
Mid-rise wheel-free scissor lifts
Mid-rise scissor lifts pick the car up by its lifting points and raise it to a comfortable working height, with the wheels hanging free. They are ideal for fast fit tyre work and make a great alternative to trolley jacks, and they also suit general bodywork and car detailing. The TSX3200-2 uses our SureFast hidden locking mechanism, which lets you stop the lift at any height, while the TSX3000M-2 is fully portable and can be moved around the workshop or even outside.
Full-height wheel-free scissor lifts
Full-height wheel-free scissor lifts are a space-saving alternative to the traditional 2 post lift. They raise the car to full working height with complete access underneath, and because they take up less floor than a 2 post lift you can often fit more bays into the same building. The range includes the VSX3500-LP, a 3,500kg low-profile lift for surface mounting, and Cascos models for surface or in-ground installation such as the Cascos 3600.

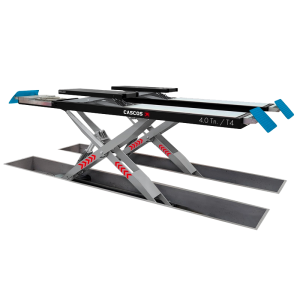

Full-height platform scissor lifts
Full-height platform scissor lifts are a space-efficient alternative to the 4 post lift. The car sits on its wheels on long platforms, with full under-car access and a smaller footprint. Options include alignment and MOT versions, added wheel-free lifting and either in-ground or surface installation. The range includes the Cascos 'T' Series and the Geolift TX Series of full-height alignment scissor lifts.
Motorcycle workbench
The MWB600 motorcycle workbench is much more than a platform lift. It has a pneumatic clamp to hold the front wheel, a hinged front section and a removable rear panel for easy wheel removal, and it raises the bike to a maximum platform height of 1,200mm.
Choosing the right scissor lift
Start with the work you do most often.
- Tyre changes, brakes and quick jobs where the wheels need to come off: a mid-rise wheel-free lift is quick to use and takes up very little space.
- Servicing, exhausts and repairs where a technician needs to stand underneath: a full-height wheel-free lift does the job of a 2 post lift in less floor space.
- Wheel alignment, MOT testing and work where the car should sit on its wheels: a full-height platform lift, with alignment or MOT versions available.
- Motorcycles: the MWB600 is built for the job.
Next, look at how the lift will be installed. Surface-mounted lifts sit on the workshop floor and avoid building work, which is a big help in rented premises. In-ground lifts are recessed so the platforms sit flush with the floor, which gives a clean, level bay and can allow a higher capacity, but they need civil works. Low-profile surface lifts are a good middle ground.
Scissor lifts compared with post lifts
Scissor lifts are not the answer for every job, and it is worth comparing them honestly with post lifts. A 2 post lift gives very open access to the underside and suits a wide spread of vehicles, but the columns take up space at the side of the bay. A 4 post lift is a natural fit for alignment and MOT work and is very simple to use. Scissor lifts save space, keep the bay clear around the car and look neat, which matters in customer-facing workshops. Many garages end up with a mix: a mid-rise lift in the tyre bay and a full-height lift or post lift for heavier work.
Planning a scissor lift installation
Before choosing, check the length and width of the bay, the condition of the floor and your power and air supply. For an in-ground lift, think about the building work involved and how long the bay will be out of use. For a surface lift, check the lowered height against the lowest cars you see, as a low-profile model makes driving on much easier. If you are planning several bays, tell us the size of the building and we can show you how many lifts will fit.
Looking after your scissor lift
Keep the area under and around the lift clean so nothing gets trapped in the scissor mechanism. Check the locks or safety system engage properly, look for any signs of hydraulic leaks, and make sure every technician knows how to position the lifting pads or drive onto the platforms correctly. Regular simple checks keep a scissor lift working smoothly for years.
Why Hofmann Megaplan
We supply scissor lifts, post lifts, wheel alignment and tyre equipment, so we can recommend the lift that suits the whole bay rather than just one machine.
Frequently asked questions
What is the difference between mid-rise and full-height scissor lifts?
Mid-rise lifts raise the car to a comfortable working height for tyre and body work. Full-height lifts raise it high enough to stand underneath.
Can a scissor lift replace a 2 post lift?
For many jobs, yes. Full-height wheel-free scissor lifts are designed as a space-saving alternative to a 2 post lift.
Do scissor lifts need to be set into the floor?
No. Many are surface mounted. In-ground versions are available where you want the platforms flush with the floor.
Can I get a scissor lift for wheel alignment?
Yes. Full-height platform scissor lifts are available in alignment versions, including the Geolift TX Series.
How do I get a price?
Call us on 01480 891011 or use the contact buttons on any lift page.
Which scissor lift suits your workshop?
Tell us the work you do and the space you have, and we will recommend the right lift.
Ask an expert Call 01480 891011
